Integrated Fire Alarm / Public Address Control Panel

Conventional Network Module
Features
  • TFT /Touch Screen display
  • Spot announcements
  • Faster evacuations
  • Remote monitoring & Control
  • Suitable for multi storey buildings
  • Expandable Loops
  • Multiple Audio Source
  • On board Self Test
  • Networking support up to 32 panels
  • Event log with date and time stamp
  • User friendly programming interface

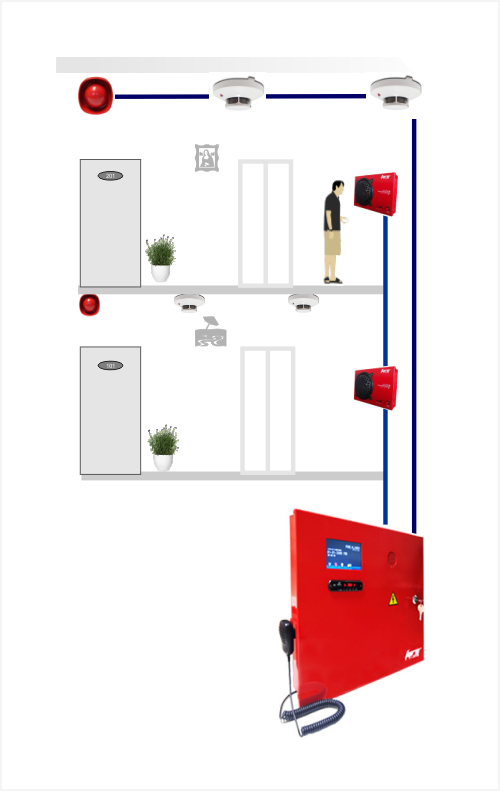

PTS-FAPA series of Integrated Intelligent Addressable Fire Alarm & Public Address control panel is bundled with fire detection followed by automated voice messages, spot announcements and user friendly operations are ideal for all commercial, residential and industrial applications. Panel features integrated voice alarm / announcement capability and utilizes addressable technology to broadcast information using Talkback / Public address units at specific location.

FAPA panels are available in various configurations with networking, expandable analogue loops and expandable audio channels. Standard features include multiple audio sources for music / audio playback, routine announcements, spot announcements and inter linking capability with centralized monitoring station.

Download Datasheet
Product Specification
Product Class Addressable
Primary Supply 230V AC ±10%-15%
Secondary Supply 24V DC - (12V - 7Ah Battery x 2)
Operating Voltage 30V DC ±5%
Indications TFT Display
Relay Contacts/Rating 2 / 2A @ 30V DC
Wiring Class B
Operating Temperature -10°C to +55°C
Humidity <95% Non Condensed
Color Red
Networking Yes (Optional)
Housing Mild Steel
