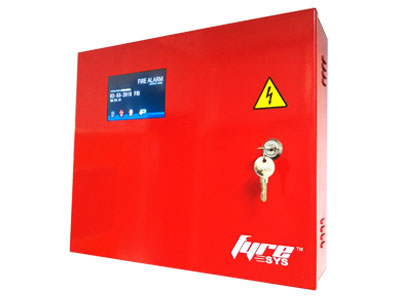

Fire Alarm Repeater Panel

Addressable Network Fire Alarm Repeater Panel
Features
  • TFT display with Touch Screen
  • Remote Monitoring and Control
  • Fire / Fault relay
  • Event log with date and time stamp
  • Onboard Self Test
  • Auto program functionality

Approvals
CE Approved Certified

Repeater panel is designed to provide full indication of events and controls of the main control panel installed in a different location and is updated through the network. It allows the user to remotely reset the main fire alarm system, silence sounders and initiate evacuation.

Advantage of networking capability offers the flexibility of remote monitoring of network panels that simplifies maintenance in a cost effective manner.

Download Datasheet
Product Specification
Product Class Addressable
Primary Supply 230V AC ±10%-15%
Operating Voltage 30V DC ±5%
Indications Touch Screen / TFT Display
Relay Contacts/Rating 2 / 2A @ 30V DC
Operating Temperature -10°C to +55°C
Humidity <95% Non Condensed
Color Red
Housing Mild Steel
